πλήρεις φωτισμοί κόλπων των οδηγήσεων 100W 150W 200W, IP65, αυξομειωτής έντασης φωτισμού 0-10V/Dali, αισθητήρας, εξάρτηση έκτακτης ανάγκης
Λεπτομέρειες:
|
|
Τόπος καταγωγής: | Κίνα |
---|---|
Μάρκα: | MF |
Πιστοποίηση: | CE,RoHS |
Αριθμό μοντέλου: | MF-HB30A |
Πληρωμής & Αποστολής Όροι:
|
|
Ποσότητα παραγγελίας min: | 50pcs |
Τιμή: | Negotiable |
Συσκευασία λεπτομέρειες: | 32*32*20cm/1pcs, N.W: 2.8KG, G.W: 3.5KG |
Χρόνος παράδοσης: | Εξαρτάται σε παραγγελία |
Όροι πληρωμής: | Μ / Τ, Western Union, Paypal |
Δυνατότητα προσφοράς: | 5,000pcs/Month |
Λεπτομερής ενημέρωση |
|||
Δύναμη λαμπτήρων: | 30W | Φωτεινή αποδοτικότητα λαμπτήρων: | ≧ το 3300LM@5000K |
---|---|---|---|
Υλικό σώματος λαμπτήρων: | Die-casting κράμα αργιλίου | Wattages: | 30W 200W |
Εγγύηση: | 3/5/7 έτη προαιρετικά | Τάση εισόδου: | 85-265Vac, 50/60Hz |
Εκτίμηση IP: | IP65 | Γωνία φακού: | 15°/30°/60°/90°/150° |
Τοποθετώντας τύπος: | Ανασταλμένος/η οροφή τοποθετημένος/ο τοίχος που τοποθετείται | PF: | > 0.9 |
Θερμοκρασία αποθήκευσης: | -40~50℃ | ||
Υψηλό φως: | IP65 LED Light,LED Canopy Light |
Περιγραφή προϊόντων
IP65 130lm / W Led Canopy Lights With Meanwell Driver 30 Watt ,CE, ROHS approved
Description:
Ming Feng Lighting Co., Ltd developed UFO IP65 LED Canopy Light / LED high bay light, With different beam angle lens as 15°/ 30°/ 60°/90°/ 150° apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. With Die-casting heat sinker,funnelled heat design, which own better heat dissipation. Varities of Joint, include ring, ceiling, bracket installation type. Unique design for Meanwell driver, to keep low temperature when operating. Beautiful appearance, chip is Samsung 3030, own high light efficiency, can achieve 110LM / Watt.
Ming Feng Lighting Co., Ltd this kinds of led canopy lights can used as canopy lights, used as high bay light, and used as street light. 3 / 5 / 7 years warranty available.
Applications:
Workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.
Main Features:
1. Using 130-140LM/W Samsung3030 leds, the whole lamp luminous efficiency can reach 110lm/w.
2. Using Meanwell LED driver, With 5 years guarantee.
3. Protection Grade: IP65
5. The led driver is installed away from the heat sink. This separation of the led driver creates a lower heat working environment giving the lamp longer life span.
6. Beam angle : 15°/ 30°/ 60°/90°/ 150° Lens optional.
7. Installation: Suspended / Ceiling Mounted / Wall Mounted
Specifications:
Item | MF-HB30A |
Input voltage | 85-277Vac 50Hz/60Hz |
LED Power | 30W |
Luminaire Efficiency | 110lm/W |
Delivered Flux(Tj80°c) | 3300lm |
IP Rating | IP65 |
LED QTY | 30 pcs |
Color temperature | 3000K/4000K/5000K |
LED Chip | SAMSUNG |
LED Driver | Meanwell(HLG series) |
Color Rendering Index | >70 Ra |
Power Factor | >0.90 |
Lifespan | ≥50,000hrs |
Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
Material | Die-casting Aluminum Alloy |
Product Size(mm) | Dia 252 * 173mm |
Packing INFO | 32 * 32 * 20cm/Carton |
Net Weight | 2.8Kg |
Gross Weight | 3.5Kg |
Certificate | CE/RoHS |
Warranty Period | 5 years |
Product Dimensions of led canopy lights(mm):

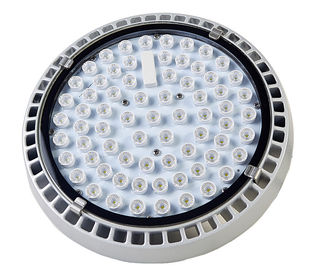

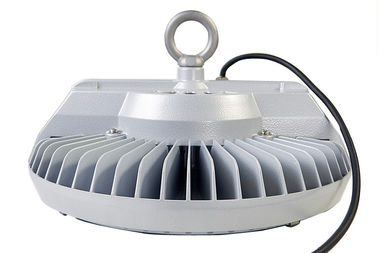

Photos show of led canopy lights:
Light distribution Curve:
